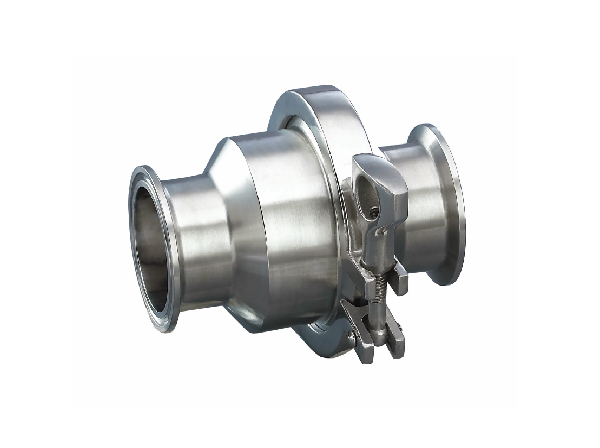

Sanitary check valve parameters
Diameter range: DN10 (1/2") to DN150 (6"), customizable diameter.
Working pressure: 1.0 MPa, 1.6 MPa or higher.
Working temperature: -10℃ to +150℃
Valve body material: 304 stainless steel, 316L stainless steel, etc.
Sealing material: Food grade rubber (silicone), PTFE
Connection method:
Quick-install (Sanitary Quick-Connect) connection: suitable for quick disassembly and cleaning, in line with hygiene requirements.
Welding type: suitable for long-term stable connection, commonly used in pipeline systems.
Threaded type: commonly used for small-diameter sanitary pipeline connections.
Flow direction: unidirectional flow
Valve disc type: floating or fixed
Opening and closing pressure: between 0.05 MPa and 0.1 MPa
Flow coefficient (Cv value): between 10 and 60
Meet international sanitary certification: FDA, EHEDG, 3A, etc.
Application areas: Commonly used for unidirectional flow control of liquids, gases and powders, especially in the food and beverage, pharmaceutical and chemical industries
