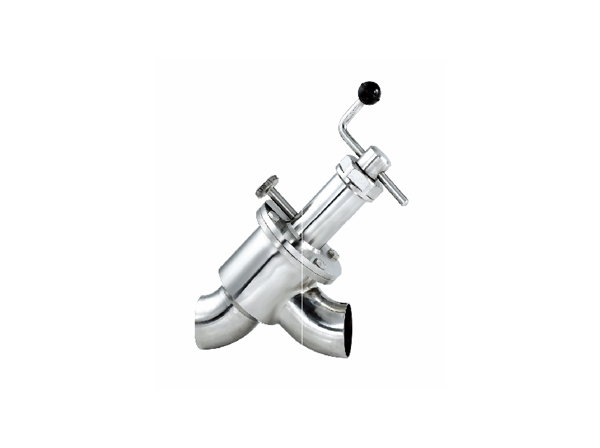

Manual regulating valve parameters
Diameter range: DN10 (1/2") to DN150 (6"), customized diameters are available.
Working pressure: 1.0 MPa, 1.6 MPa or higher
Under special working conditions, some sanitary regulating valves can withstand higher pressures
Working temperature: -10℃ to +150℃.
Valve body material: 304 stainless steel, 316 stainless steel, 316L stainless steel
Sealing material: EPDM, PTFE, silicone
Adjustment method:
Manual adjustment: adjust the valve opening by rotating the handwheel, suitable for occasions where adjustments are not made frequently.
Connection method:
Quick installation: meets hygienic requirements and is easy to disassemble and clean.
Welding type: suitable for long-term use to ensure stable connection.
Threaded type: commonly used in small-diameter pipes, easy to install.
Flow coefficient (Cv value): between 10 and 500
Design standard: meets hygienic certification standards, FDA, EHEDG, 3A.
Meet the standards that meet the safety requirements of various types of food, medicine or chemicals.
Application areas: Mainly used for flow regulation of liquids or gases, especially suitable for systems that require strict control of flow and pressure.
Including: food and beverage processing, pharmaceuticals, chemicals, dairy products and other fields.
